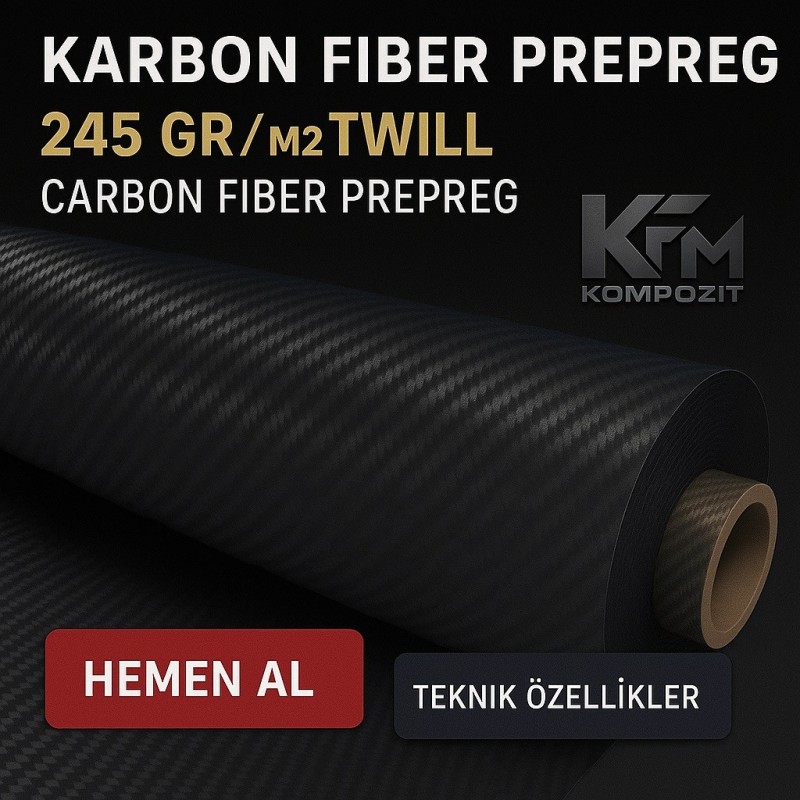

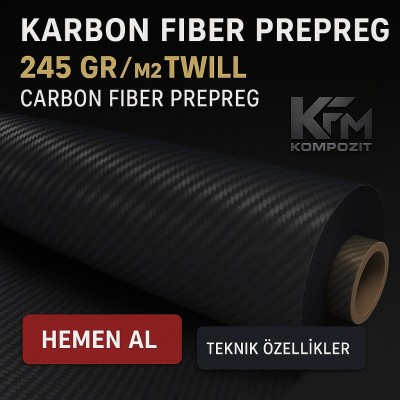

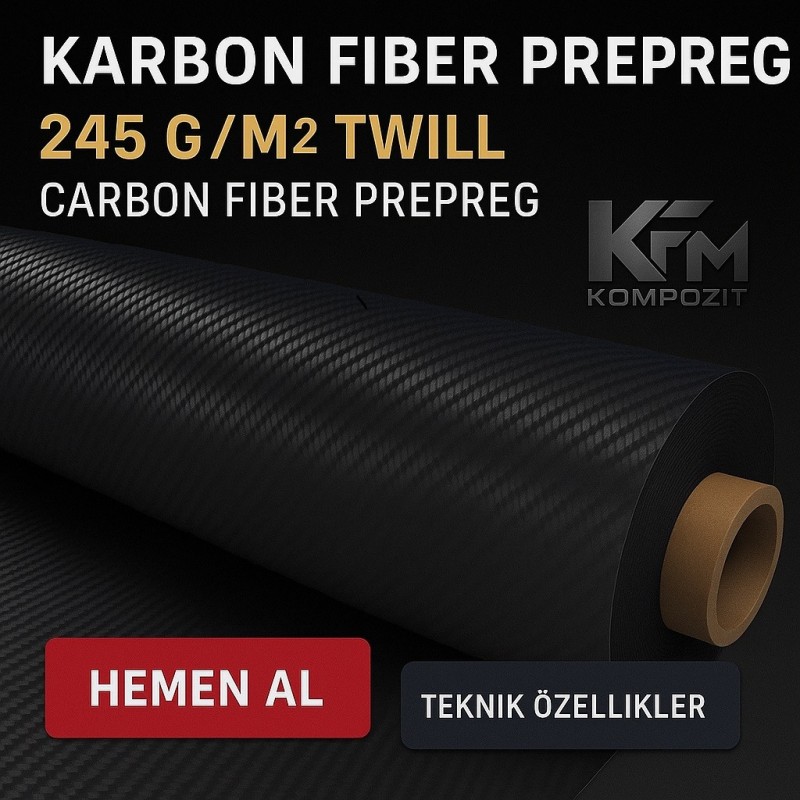

245gr Carbon Fiber Fabric

Produced from 3k 200tex yarn in Twill weave type. 245gr Carbon Fiber Fabric is ideal for applications where lightness, strength, and the appearance of carbon are important.

It is preferred in many fields such as aviation, automotive, marine, robotic systems, custom engineering projects, model-hobby, and prosthetic applications. It is also referred to as decorative carbon fabric in automotive. It is used in productions such as carbon fiber hood, mirror, spoiler, etc.

Technical Specifications of 245gr Carbon Fiber Fabric:

• Compatible with epoxy, acrylic, polyester, and vinyl ester resins.
• Data calculated for the hand lay-up method with a fiber volume fraction of 35%
• Resin consumption, 281 g/m2
• Laminate thickness, 0.393 mm
• Laminate weight, 526 g/m2
• Weft fiber, T300 or Carbon Fiber HT 3k 200tex
• Warp fiber, T300 or Carbon Fiber HT 3k 200tex
• Weave type, Twill Weight, 245g/m2
• Width, 100cm (contact us for 120cm or 150cm width)

Mechanical Properties of 245gr Carbon Fiber Fabric:

• Tensile strength, 3950 MPa
• Modulus of elasticity, 238 Gpa
• Unit elongation at break, 1.7%
• Thermal conductivity, 17 W/m
• Coefficient of thermal expansion, -0.1
• Specific electrical resistance, 1.6 x 10-3 W cm
• Fiber diameter, 7 μm
• Density, 1.76 g/cm3
